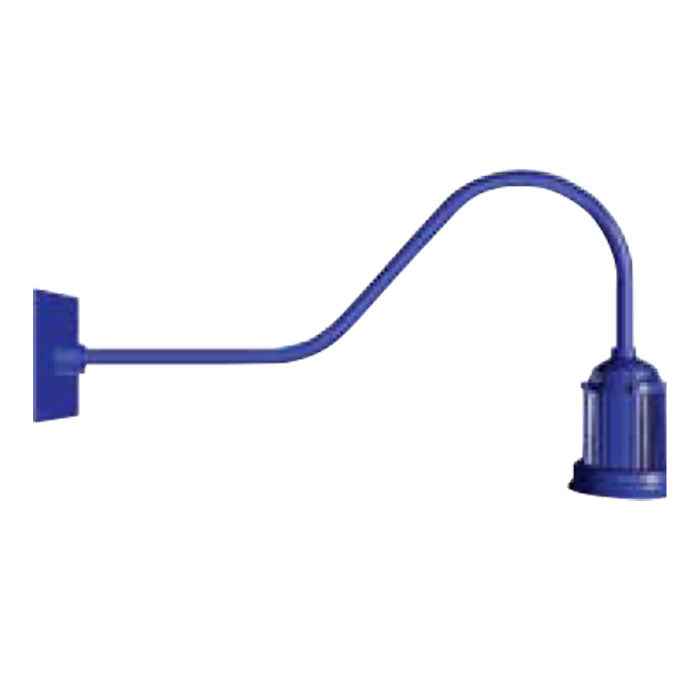

NHL-GNVP53
- Product SKU: NHL-GNVP53
- Category: Decorative Site, Gooseneck, Outdoor
This vapor resistant fixture can withstand extreme physical and environmental abuse and is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.
This vapor resistant fixture can withstand extreme physical and environmental abuse and is ideal for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Designed for architectural wall mounting up to heights of 20 feet based on light level and uniformity requirements.
- Housing: Heavy Duty Die Cast Aluminum Housing with integral Heat Sinking 3/4" NPS Threaded Mount
- Listing & Ratings: CSA: Listed for Wet Locations. ANSI/UL 1598, 8750. IP66 Sealed LED Compartment
- Finish: Powdercoat Finish Over a Chromate Conversion. Coating: Custom Colors Upon Request
- Lens: Flat Clear Tempered Glass Lens
- Mounting: Fixed Mount of Adjustable Swivel with 3/4" NPS Threads
- EasyLED LED: Aluminum Boards
- Wattage: Array: 23w System: 27w (175w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz, Less Than 20% THD and PF>0.90 Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%. Diming Source Current is 150 Microamps
- Warranty: 5-Year Warranty for -40 C to +50 C Environment
