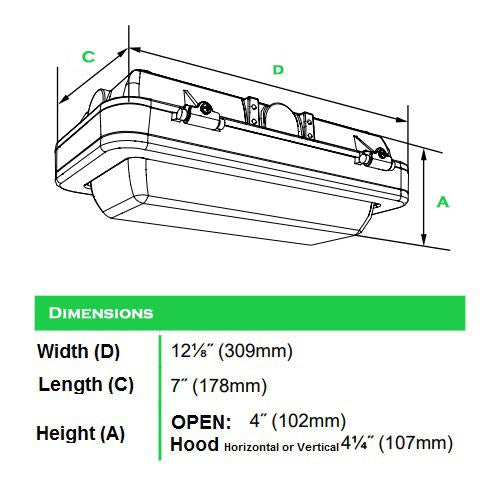

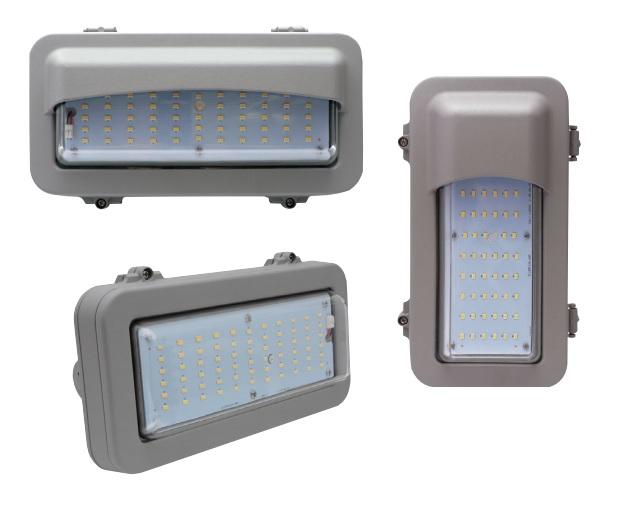

DCVT Die Cast Vapor Tight Series
- Product SKU: NHL-DCVT
- Category: Specialty, Vapor Tight
Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
Typical lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
- Housing: Heavy-Duty Die Cast Aluminum Housing and Top Frame. Can Be Tapped for Side Conduit Entry
- Finish: Gray Powder Coat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request
- Lens: Clear Polycarbonate Vandal-Resistant Lens or LumaLens Opal Polycarbonate VandalResistant Lens
- Mounting Options: Surface Mount or Use Optional Quick-Mount Bracket
- EasyLED LED: Aluminum Boards Wattage: Array: 22w, System: 26.4w (70w HID Equivalent) Array: 37.2w, System: 43.4w (175w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver Listing & Ratings: CSA: Listed for Wet Locations. Operating Temperatures: -40°C to +50°C IP66
5-Year Warranty.
