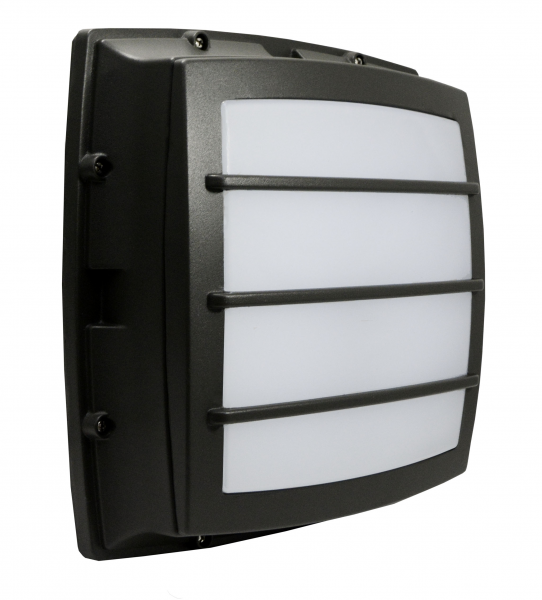

CM & CMS Series (Bulkhead Grid Frame)
- Product SKU: NHL-CM, NHL-CMS
- Category: Outdoor, Wall Mount Exterior
- Office & Public Buildings
- Condominiums
- Schools
- Shopping Malls
- Hospitality
- Office & Public Buildings
- Condominiums
- Schools
- Shopping Malls
- Hospitality
Specifications
Housing: Die Cast Gasketed Aluminum Grid Front Frame and Housing with Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: LumaLens Polycarbonate Opal Lens Eliminates LED Hot Spots.
Mounting Options: Surface Mount
LED: Aluminum Boards Driver: Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver
Wattage: Array: 17w, System: 19.7w (100w HID Equivalent)
Lumen Output: CCT:5000K/80 CRI-1,976 LumensS CCT:4000K/ 80 CRI-1897 Lumens
Listing & Ratings: CSA: Listed for Wet Locations. Operating Temperatures: -40°C to +50°C IP65 Sealed LED Compartment
Lifespan: 187,000-hour LED Lifespan based on L70 Calculations
Specifications
Housing: Die Cast Gasketed Aluminum Grid Front Frame and Housing with Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: LumaLens Polycarbonate Opal Lens Eliminates LED Hot Spots.
Mounting Options: Surface Mount
LED: Aluminum Boards Driver: Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver
Wattage: Array: 17w, System: 19.7w (100w HID Equivalent)
Lumen Output: CCT:5000K CRI:80 5000K-1923 lUMENS / 4000K-1846 Lumens
Listing & Ratings: CSA: Listed for Wet Locations. Operating Temperatures: -40°C to +50°C IP65 Sealed LED Compartment
Lifespan: 187,000-hour LED Lifespan based on L70 Calculations
