Double Bubble
Available:
In Stock

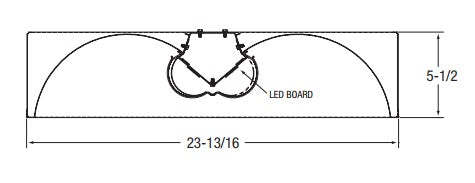

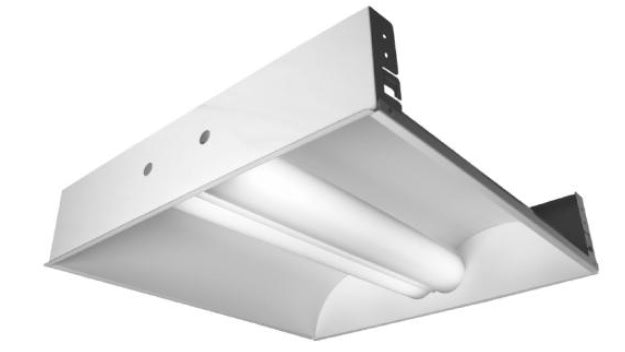

An attractive center basket 2x2 direct/indirect fixture kit, the DB provides soft, balanced ilumination for a contemporary apearance and comfortable, low glare light. The housing and LED lamp modules are fully recessed above the ceiling plane, minimizing lamp exposure. The acrylic lens wraps around the LED modules or lamps to provide the ideal combination of efficiency and aesthetcs. The curved refelctors produce a combination of direct and indirect light, fully illuminating the fixture housing. The combination panels of the unit are finished in high reflectance matte white that provide a low-brightness glow, with the majority of the light controlled through the center.
$0.00
Applications:
- Suitable for recessed commercial and instiutional applications such as offices, hostipals, schools etc. For use with standrd 15/16" grid ceiling systems.
Applications:
- Suitable for recessed commercial and instiutional applications such as offices, hostipals, schools etc. For use with standrd 15/16" grid ceiling systems.
Reflectors and ends feature specially formulated proprietary matte white paint to enhance efficiency • Linear arrayed LEDs provide soft, effective illumination • LED light engine by LG Innotek
- Housing: Die-formed heavy-guage cold rolled steel.
- Basket Options: Clear acrylic or clear w/overlay "Double Bubble" lens or high transmission extruded acrylic baskets.
- Finish: Low gloss, high reflectivity powder coat finish.
- Mountings: Standard troffer mounting for T-bar ceilings with earthquake feature.
- Light Source: Linear arrayed LED modules 350ma driver suitable for 120V-277V operation.
-
Wattage & Lumen Output: 28W-3,270 Lumens / 48W-6,341 Lumens / 56W-6,540 Lumens
Also suitable for T5 ot T5HO linear lamps. Please consult factory for T5 options. - Dimming: Features and Benefits
- Constant Current
- 0-10v dimming
- LM80
- 120-277v universal voltage
- Traditional narrow form factor fits fluorescent footprint
