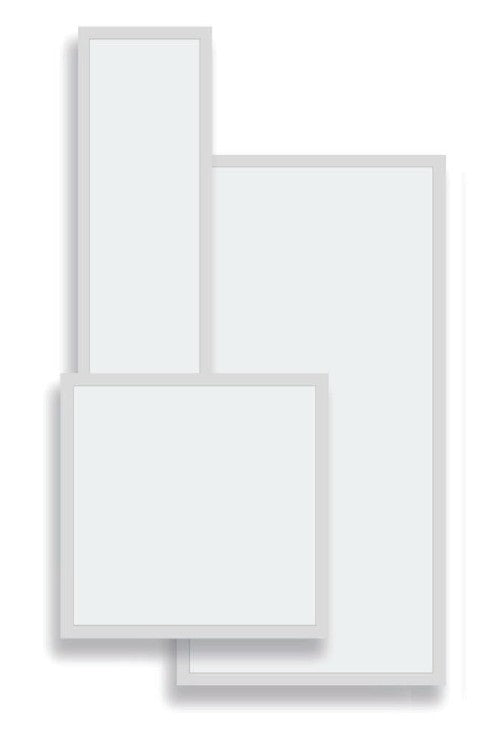

FP Series
Available:
In Stock
Our state-of-the-art backlit LED technology utilizes PMMA lensing over the LEDs which will not discolor over time. The need for a light guide is eliminated, thus increasing photometric performance while keeping costs competitive. Combined with the rigid back enclosure that prevents warping in application, this luminaire is designed for worry-free longevity and reliability.
$0.00
Accessories
- SM - Optional surface mounting kit provides for installation on plaster or other hard ceilings.
Accessories
- SM - Optional surface mounting kit provides for installation on plaster or other hard ceilings.
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
- Long-life LEDs provide 56,000 hours of operation with at least 70% of initial lumen output (L70).
- 1X4 Lumen Output: 3K-4,070Lum / 35K-4,149Lum / 4K-4,149 / 5K-4,600Lum
- 2x2 Lumen Output: 3K-4,078 / 35K- 4,134Lum / 4K- 4,134Lum / 5K-4,480Lum
- 2x4 Lumen Output (50w): 3K- 4,652Lum / 35K- 4,652Lum / 4K-4,652Lum / 5K-5,062Lum
- 2x4 Lumen Output (70w): 3K-6,567Lum / 35K-6,645Lum / 4K-6,645Lum / 5K- 7,325Lum
- Uniform illumination with no visible LED pixilation.
- Universal 120-277 AC voltage (50-60Hz) is standard. 0-10vdc dimming capability is standard.
- Power factor > 0.90. Total harmonic distortion < 20%. Color rendering index > 80.
- Aluminum housing. PMMA (polymethyl methacrylate) acrylic lens with light guide panels for optimal light distribution & efficiency.
- Suitable for ambient temperatures from -25°C to 45°C (-13°F to 113°F).
- Easy installation in new construction or retrofit. Optional surface mounting requires a surface mounting kit (option SMK).
- Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.
- ETL listed to applicable U.L. standards for damp locations & insulated ceilings (IC-rated). Complies with FCC Part 15.
- 5-year warranty of all electronics and housing.
Related items
New Horizon Lighting’s CBE2 fixtures are the ideal choice for any general illumination application. Providing smooth, even, light with dimming capabilities, our CBE2 fixtures are commonly used in offices, schools, and other commercial recessed grid indoor applications. With higher efficiency and a longer life over fluorescent fixtures, our CBE2 series offers substantial energy and maintenance savings.
Download CBE2 1x4 34w PDF Download CBE2 2x2 24ww PDF Download CBE2 2x2 35w PDF Download CBE2 2x4 30w PDF Download CBE2 2x4 45w PDF
$0.00
$0.00
An attractive center basket 2x2 direct/indirect fixture kit, the DB provides soft, balanced ilumination for a contemporary apearance and comfortable, low glare light. The housing and LED lamp modules are fully recessed above the ceiling plane, minimizing lamp exposure. The acrylic lens wraps around the LED modules or lamps to provide the ideal combination of efficiency and aesthetcs. The curved refelctors produce a combination of direct and indirect light, fully illuminating the fixture housing. The combination panels of the unit are finished in high reflectance matte white that provide a low-brightness glow, with the majority of the light controlled through the center.
$0.00
The ELL offers the look and feel of a fluorescent luminaire — subtle soft direct elements, interest and depth across the ceiling plane — with a contemporary look that blends with today’s commercial spaces. The specially formulated prismatic lens provides a diffused luminance, with the effective combination of excellent light transmission and haze.
