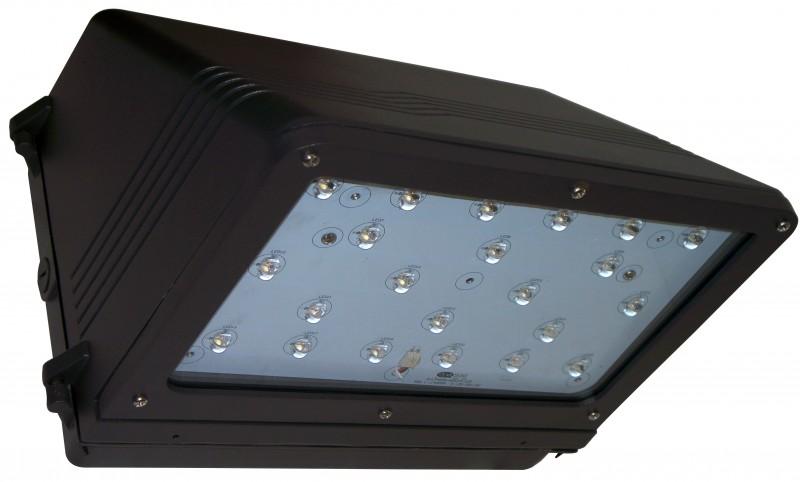

Medium Wedge LED
The M-Wedge series is corrosion resistant medium wall pack designed to meet the rugged demands of industrial and commercial applications. The housing can be mounted directly over a standard 4" outlet box or surface wired through ½" conduit entries.
Suitable for wet locations, these lights provide illumination for safety and security along building perimeters. The zero sight line feature allows this product to meet the local "Dark Sky" requirements.
- Uses up to 88% less energy when compared to the HID equivalent
- Instant on/off operation
- Resistant to shock and vibration
- Surge Protection
- Unique optical design provides optimum light distribution
- Power factor 0.98 (typ)
- Produces no UV radiation
- Contains no Mercury
- 5 year limited warranty
- DLC Approved
- Product SKU: NHL-MWEDGE
- Category: Decorative Site, Outdoor, Sconce
- Parking Areas
- Entrances
- Walkways
- Underpasses
- Loading Docks
- Recreation Areas
- Parking Areas
- Entrances
- Walkways
- Underpasses
- Loading Docks
- Recreation Areas
Housing: Die Cast Hinged and Gasketed Aluminum Front Frame and Housing with ½” Coin Plugs. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Clear Flat Glass Lens or Clear Flat Prismatic Glass Lens. LED: Aluminum Boards
Mounting Options: Cast-in Template for Mounting Directly Over a 4˝ Recessed Outlet Box, or Use ½˝ Surface Conduit.
Wattage: Array: 37.2w, System: 43w (250w HID Equivalent) Lumen Output: CCT:5000K CRI:80 Type III-3959 Lumens / Type V-4148 Lumens / CCT:4000K CRI:80 TYPE III-3801 Lumens / Type V-3982
Driver: Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver
Listing & Ratings: CSA: Listed for Wet Locations. Operating Temperatures: -40°C to +40°C IP55, DLC Approved
Lifespan: 213,000-hour LED Lifespan based on L70 Calculations
