Higher Wattage Inverters Series
The NHL-LPSHW Series is designed to provide 750 to 1150 watts of emergency power to Incandescent, Fluorescent, Induction and/or LED fixtures. The NHL-LPSHW unit provides clean, sinusoidal A C output power allowing it to be remotely mounted up to 1,000 feet away from the controlled fixture(s). Unlike a ballast fluorescent emergency pack, the NHL-LPSHW provided power to the input side of the fixture (including the fixture ballast) eliminating any chance of incompatibility. The NHL-LPSHW Series is designed for surface mounting. All NHLLPSHW systems will provided emergency power output for a minimum of 90 minutes.
The NHL-LPSHW Midsize-electrical inverter systems for powering up to 750 to 1150 watts of incandescent, fluorescent, induction or LED lighting loads. Pulse width modulated (PWM) output design provides clean, 60 Hz. sinusoidal emergency power to loads.
- Category: Inverters, Life Safety
ELECTRICAL SPECIFICATIONS
Input
• Input Voltages: Dual 120 or 277VAC ±10% (User selectable with two jumper wires provided)
• Input Frequencies: 60Hz ±2%
• Input Surge Protection: Meets UL924
• Input Protection: Provided by Service Panel rated at 20 amps maximum
Output
• Output Voltages: 120 or 277VAC, 60Hz
• Efficiency Rating: 98% at full rated load (line)
• Waveform: Sinusoidal (digitally controlled)Static Voltage: ±5% during battery discharge. 0-100% linear load.
Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
• Output Distortion: Less than 3% THO (linear load)
• Transfer Time: Less than 1. O second
• Load Power Factor Range: 0. 88 Lead to 0. 88 Lag
• Minimum Loading: 0% o f rated system capacity
• Output Protection: Circuit breaker and overload shut down protection

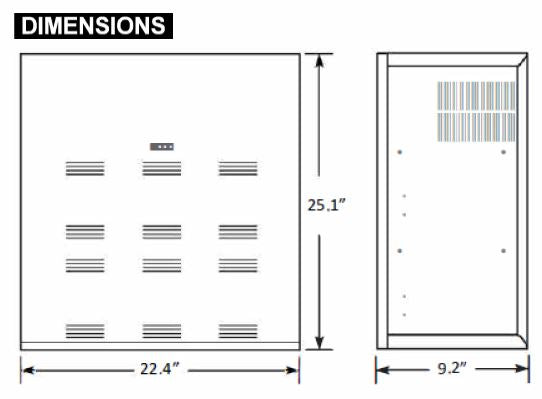

MOUNTING
• Surface mount models are designed for mounting to walls by means o f keyhole slots provided in the back o f the unit housing

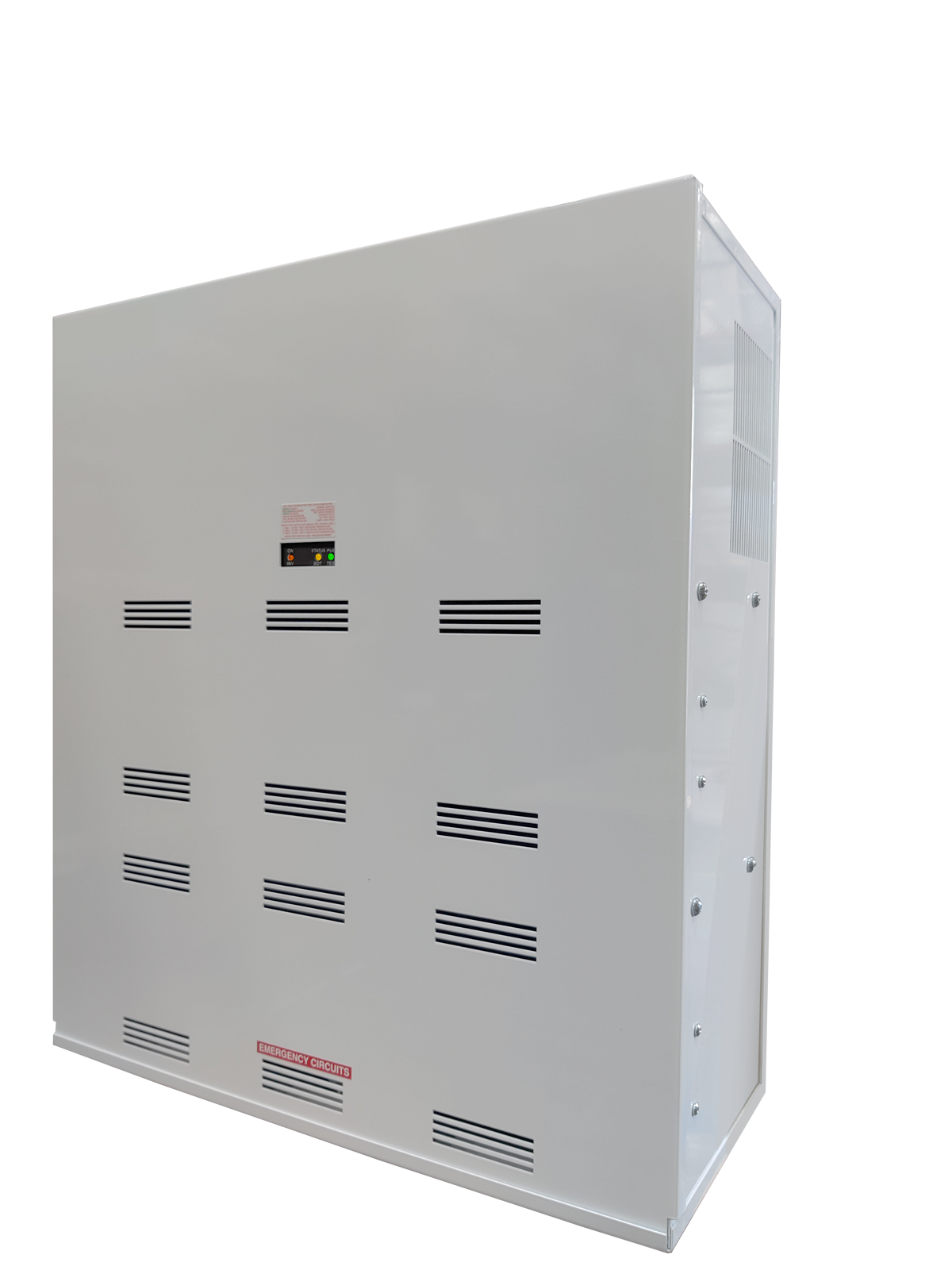

HOUSING
• Heavy duty steel cabinet is finished in white baked-on powder paint providing scratch and corrosion resistance
• Optional special color paint (-SP) finishes are available upon request
WARRANTY / LISTING
• Unit: (excluding lamps) Full coverage against defects in materials and workmanship for 3 years from date o f shipment
• Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage
• All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (20 ° - 30 ° C)
• Certified to CEC Under Title 20 regulations
• FCC Part 15 Class A Compliant
ELECTRICAL SPECIFICATIONS
Input
• Input Voltages: Dual 120 or 277VAC ±10% (User selectable with two jumper wires provided)
• Input Frequencies: 60Hz ±2%
• Input Surge Protection: Meets UL924
• Input Protection: Provided by Service Panel rated at 20 amps maximum
Output
• Output Voltages: 120 or 277VAC, 60Hz
• Efficiency Rating: 98% at full rated load (line)
• Waveform: Sinusoidal (digitally controlled)Static Voltage: ±5% during battery discharge. 0-100% linear load.
Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
• Output Distortion: Less than 3% THO (linear load)
• Transfer Time: Less than 1. O second
• Load Power Factor Range: 0. 88 Lead to 0. 88 Lag
• Minimum Loading: 0% o f rated system capacity
• Output Protection: Circuit breaker and overload shut down protection
MOUNTING
• Surface mount models are designed for mounting to walls by means o f keyhole slots provided in the back o f the unit housing
HOUSING
• Heavy duty steel cabinet is finished in white baked-on powder paint providing scratch and corrosion resistance
• Optional special color paint (-SP) finishes are available upon request
WARRANTY / LISTING
• Unit: (excluding lamps) Full coverage against defects in materials and workmanship for 3 years from date o f shipment
• Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage
• All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (20 ° - 30 ° C)
• Certified to CEC Under Title 20 regulations
• FCC Part 15 Class A Compliant
